1. 離心泵  centrifugal pump

為了確保產品品質，強工泵所有零部件都在廠內生產，為了保證始終如一的

高品質，我們從訂單到設計、加工、組裝、檢測為止，嚴格監控整個生產環節，我們擁有 的生產設備，保證產品能夠滿足客戶需求，我們制造的每個零部件都檢驗合格。

特點：

簡單緊湊的設計提高了空間利用率和易操作性

高效節能設計

性能穩定

可靠的機械密封

材質：鑄鐵、不銹鋼SUS304\SUS316、銅

無石棉包裝符合環保要求

閉式葉輪-用于泵送清潔液體，或含少量雜質液體。

Closed impeller  is used for pumping clean liquids or liquids containing some impurities.

開式葉輪-用于泵送含固體顆粒，磨蝕性液體或濃度高達8%的紙漿

Oper impeller  is designed for liquids containing solid particles. Abrasive liquids or paper stock up to 8% consistency.

特殊開式葉輪- 用于泵送含大顆粒、長纖維、磨蝕性夜里或是濃度高達8%的紙漿

Special open impeller  is suitable for liquids containing bigger solid particles and long fibers, abra-sie liquids or paper stock up to 8% consistency.

單端面機械密封  single mechanical seal

雙端面機械密封  Double mechanical seal

填料密封        Gland packing

重型軸，在密封腔的擾度偏差小于0.05mm，標準材料為高強度的雙相不銹鋼

Heavy-duty shaft.Deflection at stuffing box less than o.05mm.High strength duplex stainless steel steel shaft material sa standard.

機械密封-有多種不同結構的機械密封可供選擇。單端機械密封用于不帶循環液的泵送場合，密封面可用泵送介質潤滑，外界沖洗液或用油脂潤滑。針對一些特別苛刻的工況，還可選用雙端面機械密封，這時需外接密封水。

Mechanical seals

Various mechanical seal configurations are available. A single mechanical seal is used for many applications with no circulation liquid. Flushing with internal/external circulation liquid or with grease is available. For extremely demanding liquids and application, double mechanical seals can be selected. Sealing liquid from an external source is required.

填料密封-帶外沖洗的填料密封可防止輸送液體流入密封腔，帶壓沖洗液可混入輸送液體，也可通過外接排水管排出。

Gland packing

Gland packing with external flushing prevents the pumped liquid from penetrating into the seal housing.The pressurised flushing liquid causes it to flow into the pumped liquid. Alternatively the external flushing liquid can have a seperater outlet connection.

性能參數

規格DN：32-350mm

流量Q：可達2000m3/h

揚程H：可達150m

工作壓力P:可達1.6MPa

介質溫度T:-20℃～105℃

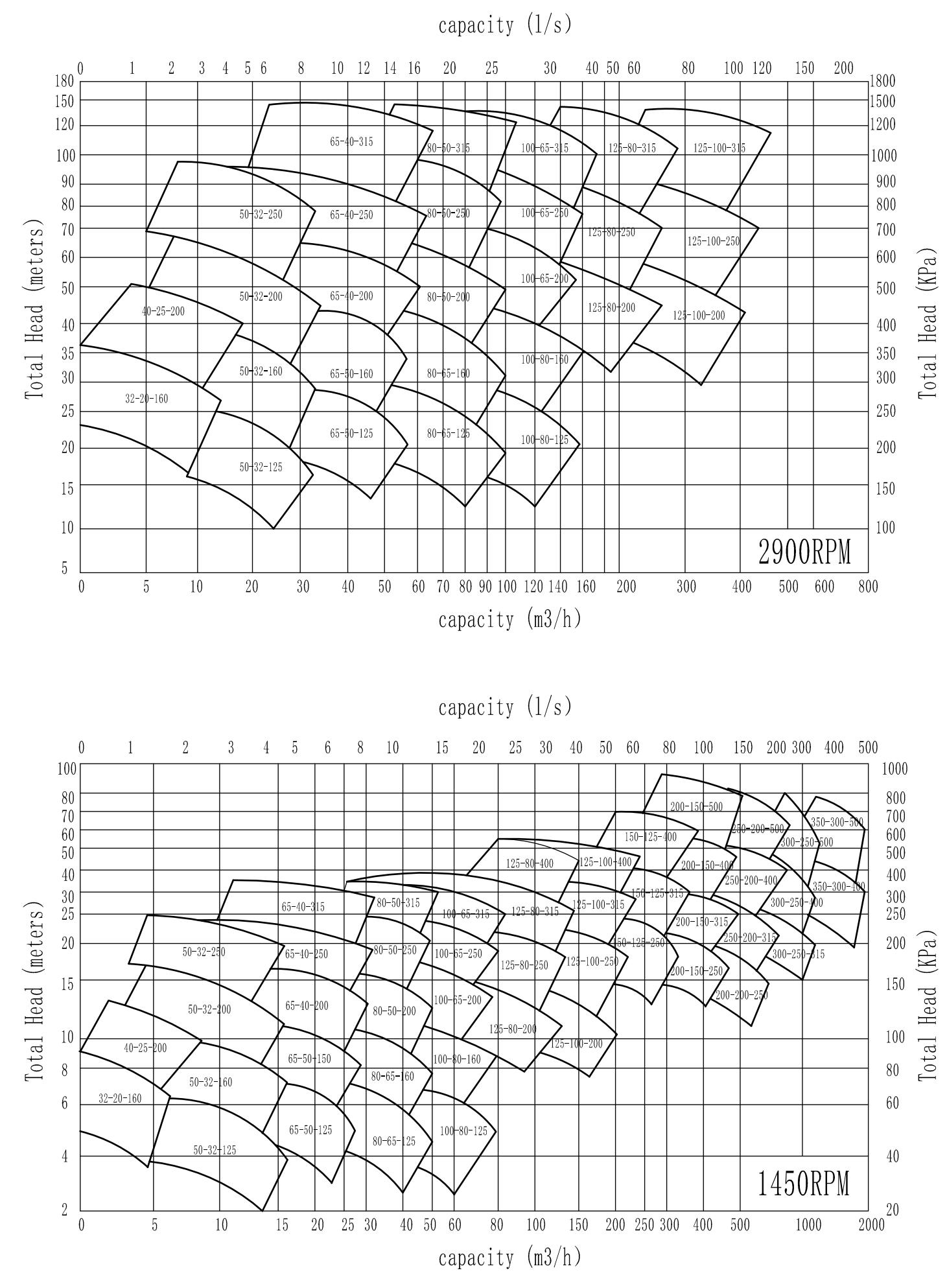

Operating Data

Sizes DN:      32-350mm

Capacity Q:    up to 2000m3/h

Head H:        up to 150m

Pressure P:    up to 1.6MPa

Temperature T: -20 -105℃
